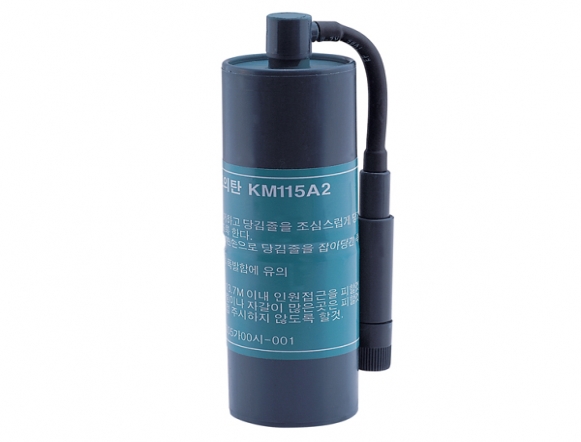

Simulator Projectile Ground Burst KM115A2

NSN : 1370-37-503-2680
Model (DODIC) : KM115A2/KL594
Size : Ø55.0×160.0mm
Weight : 0.135 kg
Method of actuation : Hand pull cord
Color : Blue
Filler charge : Bursting-smoke compositions
Performance : Delay 6∼10 sec
Whistle time 3∼5 sec
Bursting-sound 115dB (at 13.7m distance)
Flash average 60,000 cp
Packing : 100 per wooden box
Weight : 32.8 kg
Cube : 0.128㎥
Dimensions : 280.0 ×62.0 ×180.0 mm
This simulator is a hand-thrown device. The pull cord-actuated igniter is of the friction type and ignites the safety fuze and the whistle assembly. After a 3 to 5 second delay, the final burning ignites the bursting-smoke charge which explodes producing a flash and a bursting-sound.
The simulator KM115A2 is used to create battle noises and effects on flight of shells and ground explosions during troop maneuvers and tactical training of combatant.
