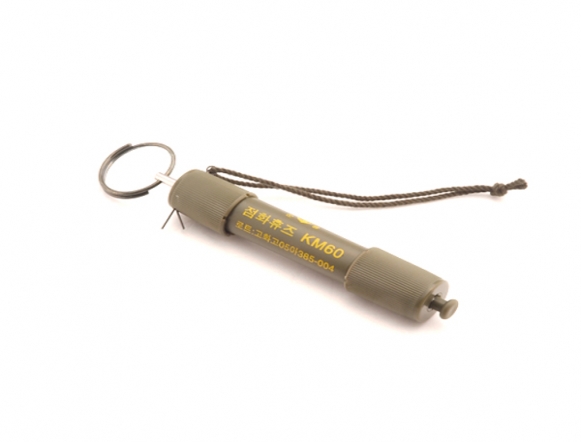

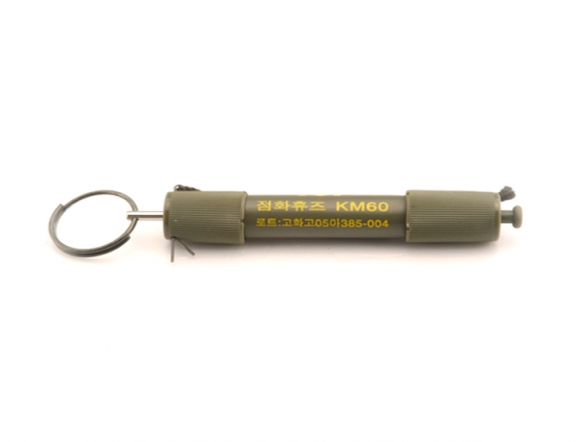

Igniter Time Blasting Fuze KM60
제품제원
NSN: 1375-00-691-1671
Model(DODIC) : KM60/KM766
Size: Ø16.0×L121.0mm / Housing 80.7mm
Weight: 33.0 g
Color: Olive green
Packing: 200 or300 per wooden box
Weight : 24.0kg
Cube : 0.065 ㎥
weight : 24.0kg
Dimensions : 758.0×357.0×234.0(mm)
Model(DODIC) : KM60/KM766
Size: Ø16.0×L121.0mm / Housing 80.7mm
Weight: 33.0 g
Color: Olive green
Packing: 200 or300 per wooden box
Weight : 24.0kg
Cube : 0.065 ㎥
weight : 24.0kg
Dimensions : 758.0×357.0×234.0(mm)
기능
Unlock the cap turning 2~3 times to the left. Remove the plug and insert the safety fuze. Then, lock the cap turning to the right. Remove the cotter pin and pull thering, then it will be ignited.
용도
Igniter time blasting fuze KM60 is used for igniting safety fuze of mine class.
|
