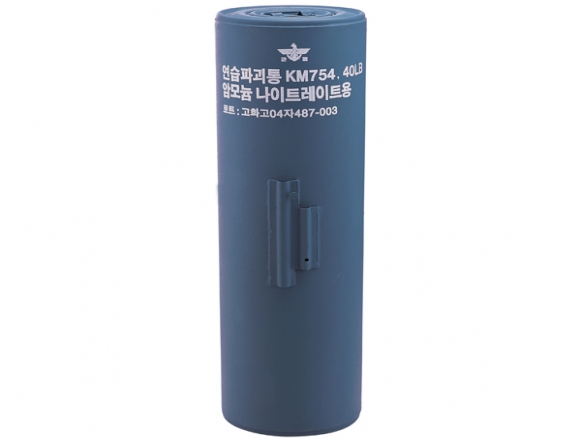

Bangalore Torpedo, Practice, KM754 For 40LB Ammonium Nitrate + Smoke A…
제품제원
NSN : 1375-37-295-9011
Model(DODIC) : KM754/KM05
Size : Ø175.0×610.0mm
Weight : 9.0Kg
Method of actuation :
Initiating by firing device, electrical KM57.
Color : Blue
Packing : 2 per wooden box
Weight : 27.5Kg
Cube : 0.066㎥
Dimensions : 693.0×401.0×237.0(mm)
Model(DODIC) : KM754/KM05
Size : Ø175.0×610.0mm
Weight : 9.0Kg
Method of actuation :
Initiating by firing device, electrical KM57.
Color : Blue
Packing : 2 per wooden box
Weight : 27.5Kg
Cube : 0.066㎥
Dimensions : 693.0×401.0×237.0(mm)
기능
After connected the smoke charge and the electric basting cap, practice KM752 to the body, the charge is ignited by firing device, electrical KM57.
At this time, bursting-sound and smoke are occurred.
At this time, bursting-sound and smoke are occurred.
|
용도
This practice bangalore torpedo KM754 is designed for the purpose of training to teach the installation, disarming or handling of the actual bangalore torpedo be used destroying building and fortifications or overturning bridge abutment and makes it suited for cratering and ditching operations.
|
|---|---|
|
기타
Smoke charge KM755(KM06)
Electric blasting cap, practice KM752(KM07) Firing Device, electrical KM57 Conducting wire Ass’y Electroscope KM40 * Bursting-Sound 80dB(at 23M distance) |
