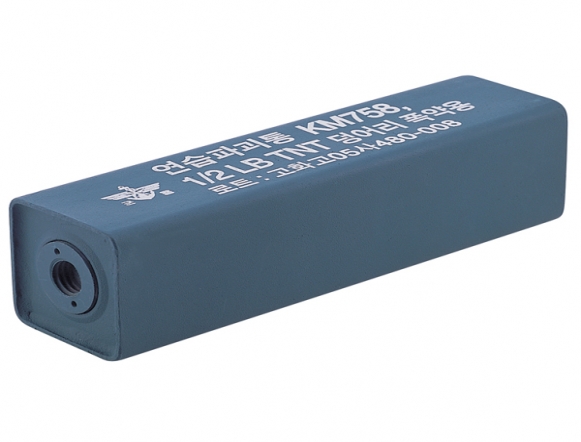

Bangalore Torpedo, Practice, KM758 For 1/2Lb TNT Charge Demolition Blo…
제품제원
NSN : 1375-37-295-9007
Model(DODIC) : KM758/KM01
Size : 48.5×48.5×182.0(mm)
Weight : 450.0g
Method of actuation :
Initiating by firing device, electrical KM57.
Color : Blue
Packing : 50 per wooden box
Weight : 38.5Kg
Cube : 0.049㎥
Dimensions : 603.0×304.0×266.0(mm)
Model(DODIC) : KM758/KM01
Size : 48.5×48.5×182.0(mm)
Weight : 450.0g
Method of actuation :
Initiating by firing device, electrical KM57.
Color : Blue
Packing : 50 per wooden box
Weight : 38.5Kg
Cube : 0.049㎥
Dimensions : 603.0×304.0×266.0(mm)
기능
After connected the smoke charge and the practice electric blasting cap, practice KM752 to the body, the charge is initiated by the firing device, electrical KM57.
At this time, bursting-sound and smoke are occurred.
At this time, bursting-sound and smoke are occurred.
|
용도
This practice bangalore torpedo KM758 is designed for training personnel proper method to be observed in the care during arming, disarming or handling in the same method as the actual
demolition block M2 in order to use cutting of bridges, breaching or demolition work. |
|---|---|
|
기타

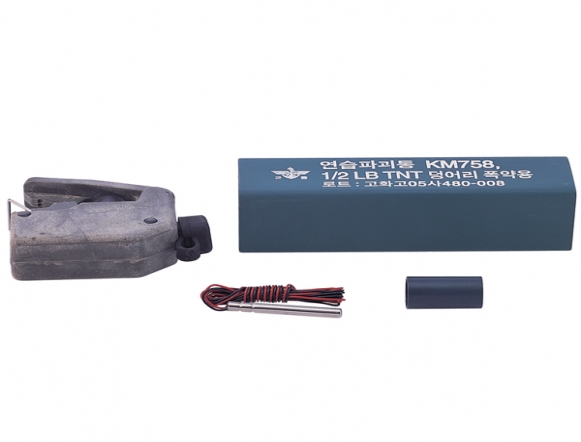

Smoke charge KM759(KM02)
Electric blasting cap, practice KM752(KM07) Firing Device, electrical KM57 Conducting wire A?sy Electroscope KM40 * Bursting-Sound 80dB(at 23M distance) |
