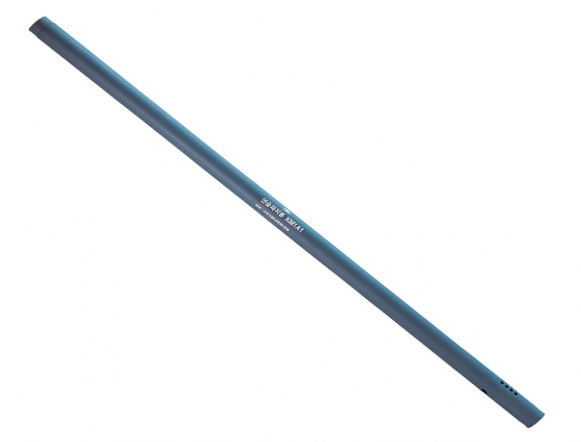

Bangalore Torpedo, Practice, KM1A1 + Smoke Agent KM756
제품제원
NSN : 1375-37-295-9009
Model(DODIC) : KM1A1/KM03
Size : Φ51×1,525mm
Weight : 6.6Kg
Method of actuation :
Initiating by firing device, electrical KM57.
Color : Blue
Packing : 6 per wooden box
Weight : 45.7Kg
Cube : 0.088㎥
Dimensions : 1,598.0×274.0×203.0(mm)
Model(DODIC) : KM1A1/KM03
Size : Φ51×1,525mm
Weight : 6.6Kg
Method of actuation :
Initiating by firing device, electrical KM57.
Color : Blue
Packing : 6 per wooden box
Weight : 45.7Kg
Cube : 0.088㎥
Dimensions : 1,598.0×274.0×203.0(mm)
기능
After connected the smoke charge and the electric
blasting cap, practice KM752 to the body, the charge
is initiated by firing device, electrical KM57. At this time,
bursting-sound and smoke are occurred.
blasting cap, practice KM752 to the body, the charge
is initiated by firing device, electrical KM57. At this time,
bursting-sound and smoke are occurred.
|
용도
This practice bangalore torpedo KM1A1 is designed for the purpose of training personnel proper
method to be observed in the care, during arming, disarming or handling in the same method as the live bangalore torpedo M1A1 in order to use breaching the path of the entanglements or minefields. |
|---|---|
|
기타

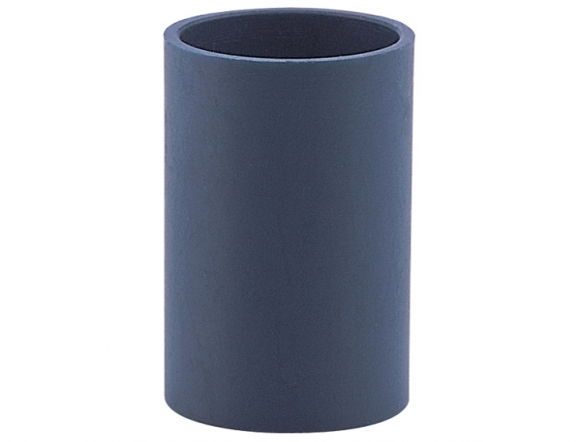

Smoke charge KM756(KM04)
Electric blasting cap, practice KM752(KM07) Firing Device, electrical KM57 Conducting wire Ass’y Electroscope KM40 * Bursting-Sound 80dB(at 23M distance) |
