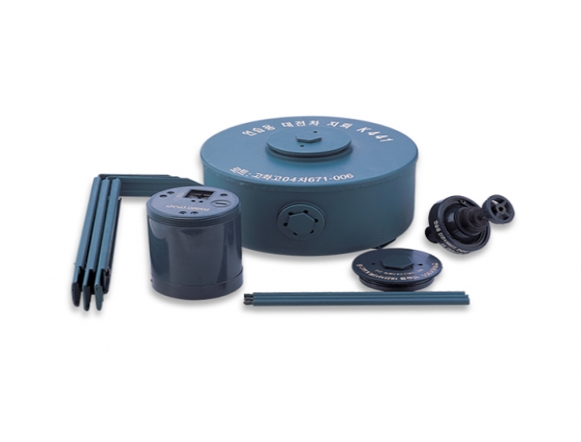

Mine, Anti-Tank, Practice, K441 + Fuze, Practice, KM607 + Fuze, Mechan…
제품제원
NSN : 1345-37-501-6749
Model(DODIC) : K441/KK32
Size : Ø219.0×93.8mm
Weight : 8.7 kg
Color : Blue
Fuze : KM607
Packing : 4 per wooden box
Weight : 36.0 kg
Cube : 0.056㎥
Dimensions : 593.0×329.0×286.0(mm)
Model(DODIC) : K441/KK32
Size : Ø219.0×93.8mm
Weight : 8.7 kg
Color : Blue
Fuze : KM607
Packing : 4 per wooden box
Weight : 36.0 kg
Cube : 0.056㎥
Dimensions : 593.0×329.0×286.0(mm)
기능

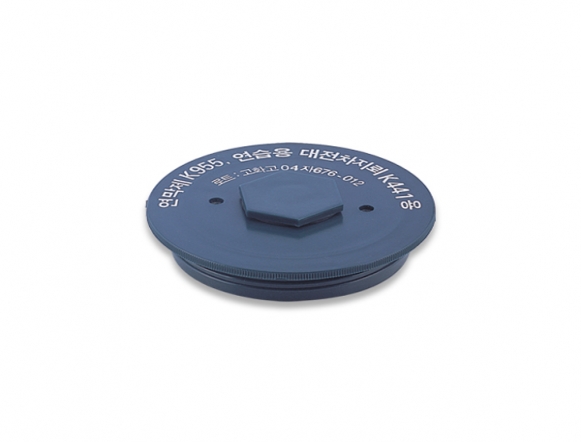

After connected the smoke charge and the fuze KM607 to the K441 body, the fuze is actuated by a loading of the pressure ring or from side load effects on the tilt rod.
At this time, bursting-sound and smoke are occurred.
At this time, bursting-sound and smoke are occurred.
|
용도
The K441 mine is used for the effective laying and removing training of the actual M21 anti-tank mine.
|
|---|
