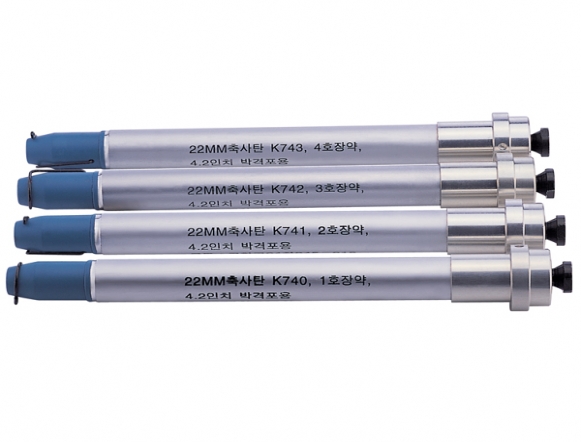

Cartridge Sub-Caliber 22MM Practice K740, Charge 1 For 4.2Inch Mortar

제품제원
Size : Ø22.0×260.0mm
Weight : 0.43Kg
Firearms for use : 4.2inch Mortar
Primer : Percussion M209, NO70
Materials : Aluminium
Color : Blue (Head), White (Case)
Filler charge : Black powder
Bursting : smoke charge
Packing : 50 per wooden box
Weight : 35.0Kg
Cube : 0.04㎥
Dimensions : 418.0×218.0×283.0(mm)
기능
After these sub-caliber cartridges are loaded in the KM1 sabot and it is fired by the same method as actual mortar(4.2inch) and then it make flight for a constant distance which eject bursting-sound and smoke at the target area.
용도
These 22MM cartridges are used in artillery training of 4.2inch Mortar.
특성
[CLASSIFICATION . DODIC . RANGE, MAX(M)]
Cartridge 22MM, K740, CHARGE 1 FOR 4.2INCH Mortar . KA19 . 235
Cartridge 22MM, K741, CHARGE 2 FOR 4.2INCH Mortar . KA20 . 330
Cartridge 22MM, K742, CHARGE 3 FOR 4.2INCH Mortar . KA21 . 435
Cartridge 22MM, K743, CHARGE 4 FOR 4.2INCH Mortar . KA22 . 540

[ VELOCITY FCARTRIDGE (M/S) . N S N ]
45-52 . 1305-37-290-0069
54-65 . 1305-37-290-0070
62-74 . 1305-37-290-0071
75-81 . 1305-37-290-0072
