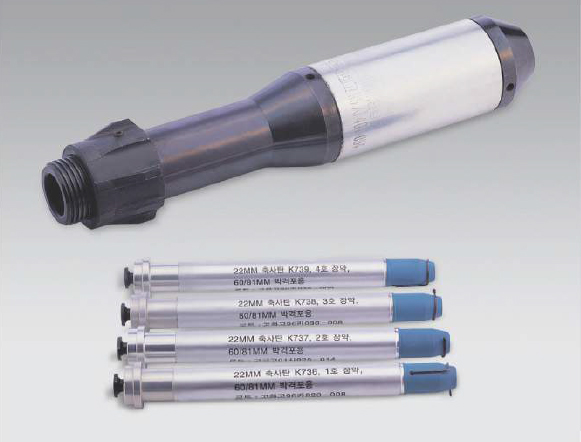

Cartridge Sub-Caliber 22MM Practice K738, Charge 3 For 60/81MM Mortar

제품제원
Size : Ø22.0×250.0mm
Weight : 0.4Kg
Firearms for use : 60/81MM Mortar
Primer : Percussion M209, M35
Materials : Aluminium
Color : Blue (Head), White(Case)
Filler charge : Black powder
Bursting : Smoke charge
Packing : 50 per wooden box
Weight : 30.0Kg
Cube : 0.03㎥
Dimensions : 393.0×211.0×273.0(mm)
기능
After these sub-caliber cartridges are loaded in the KM1 or KM3 sabot and it is fired by the same method as actual mortar(60/81MM) and then it make flight for a constant distance which emit bursting-sound and smoke at the target area.
용도
These 22MM cartridges are used in artillery training of 60/81MM Mortar .
특성
[ CLASSIFICATION | DODIC | RANGE, MAX(M) ]
Cartridge 22MM, K736, CHARGE 1 FOR 60/81MM Mortar | KA15 | 195
Cartridge 22MM, K737, CHARGE 2 FOR 60/81MM Mortar | KA16 | 225
Cartridge 22MM, K738, CHARGE 3 FOR 60/81MM Mortar | KA17 | 330
Cartridge 22MM, K739, CHARGE 4 FOR 60/81MM Mortar | KA18 | 435

[ VELOCITY FCARTRIDGE (M/S) / N S N ]
40-48 / 1305-37-290-0065
43-54 / 1305-37-290-0066
53-66 / 1305-37-290-0067
65-71 / 1305-37-290-0068
