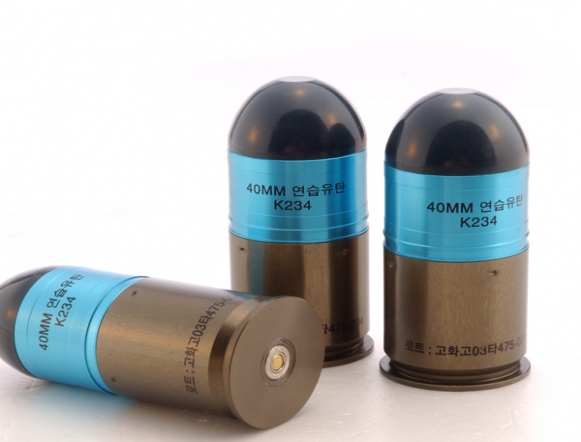

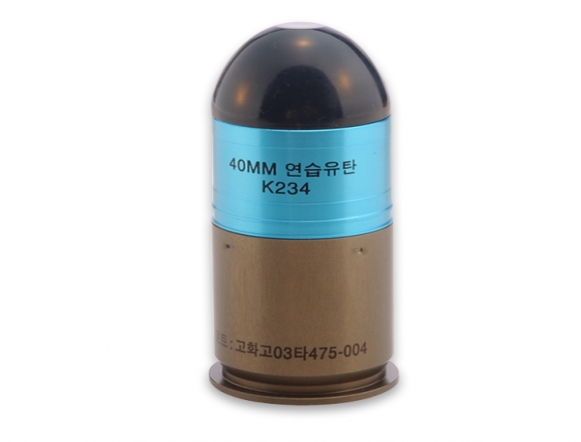

Cartridge, 40MM, Practice, K234
제품제원
NSN : 1310-37-290-5029
Model(DODIC) : K234/KB577
Size : Ø41.37×100.0mm
Firearms of use : Rifle Grenade Launchers M79, KM203 and K201
Weight : 210±2g
A kind of Cartridge : Target Practice
Color : Case- Olive Drab, Projectile - Blue
Material : Aluminum, Resin, Steel
Performance : Muzzle Velocity - 75±2.1m/s Max .Range :400 m
Packing : 36Rds/1Carton(Barrier Bag), 2Cartons/Wooden Box(72Rds)
Weight : 22.7Kg
Cube : 0.049㎥
Dimensions : 393.0×396.0×316.0(mm) (Ref. Of outside size)
Model(DODIC) : K234/KB577
Size : Ø41.37×100.0mm
Firearms of use : Rifle Grenade Launchers M79, KM203 and K201
Weight : 210±2g
A kind of Cartridge : Target Practice
Color : Case- Olive Drab, Projectile - Blue
Material : Aluminum, Resin, Steel
Performance : Muzzle Velocity - 75±2.1m/s Max .Range :400 m
Packing : 36Rds/1Carton(Barrier Bag), 2Cartons/Wooden Box(72Rds)
Weight : 22.7Kg
Cube : 0.049㎥
Dimensions : 393.0×396.0×316.0(mm) (Ref. Of outside size)
기능
This cartridge is consist of generally small ammunition form, and when the cartridge arrives at the target, the impact fuze in the projectile is operated. And then it appears bursting-sound (100dB) and white color smoke.
용도
This cartridge is used to firing marksmanship training of 40mm Rifle Grenade Launchers M79, KM203 and K201. And it is proved that use the actual cartridge and combat actioning.
|
|
특성
iT appears bursting-sound abd white color smoke. (When a night time, appears a flash) Other company’s item is appeared smoke b breakage of the projectile, but our company’s item is appeared them by operation of the impact fuze in the projectile. (Misfire rate down)
|
|
작동방법
Rifle Grenade Launchers are operated as follow :
OPENNING THE CHAMBER → CLOSING THE FIRING PIN → EJECTION THE CASE → DISCHARGING THE CASE → ARMING THE CARTRIDGE → CLOSING THE CHAMBER → FIRING function. when the barrel ass’y of a gun locates the front, Cartridge armed in the bore, and the barrel ass’y of a gun pulled completely and then finished firing preparing. At this time , pull the trigger, the firing pin strikers the primer of te Cartridge, and fire. |
