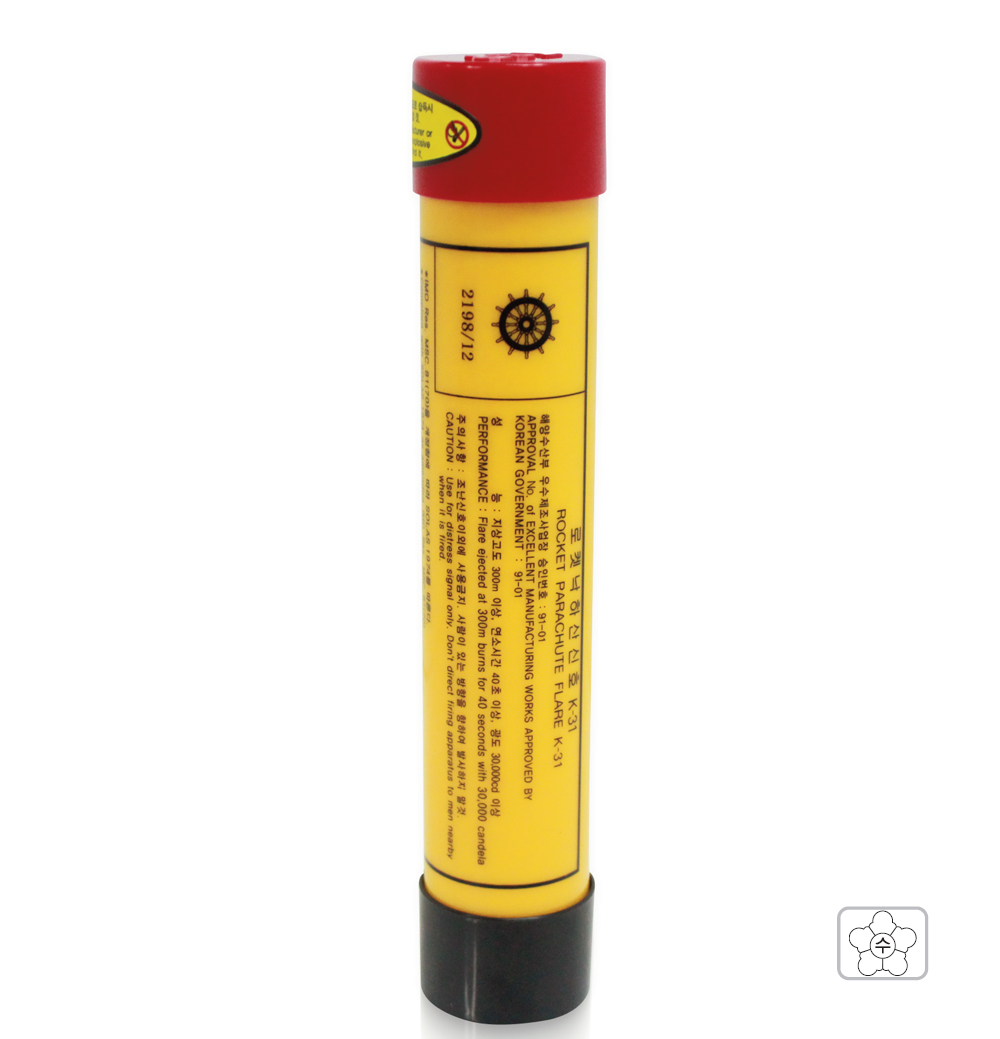

K-31 Rocket Parachute Flare
제품제원
Size : Φ41ⅹ221㎜
• Weight : 370g
• Materials : Resin
• Ignition Method : Rocket Propulsion
type of detonate
• Weight : 370g
• Materials : Resin
• Ignition Method : Rocket Propulsion
type of detonate
기능
Luminous Color : Vivid red
• Ignition Time : Min. 40 seconds
• Luminous Intensity : Min. 30,000 cd
• Altitude : Min. 300m
• Ignition Time : Min. 40 seconds
• Luminous Intensity : Min. 30,000 cd
• Altitude : Min. 300m
|
용도
Pick up a distress signal on the sea.
|
|---|---|
|
작동방법
1. Remove top and bottom cap.
2. Pull bottom ring until it stops and turn it upwards. 3. Hold singal with both hands firmly and keep upright. Squeeze top of ring holder with base of thumb, then push it for fire. |
|
포장제원
• Rocket Parachute Flare
2 Rounds/1Plastic Box, 12Plastic Box/1Carton(24Rounds) |
|
정비/보관
• Expiry Period : 3 years
|
|
주의사항
Keep to over level of head.
Use for distress signal only. |
|
기타
■REFERENCE
• SOLAS 1999/2000-5 April 2001 • LSA Code-25 September 1998 • Resolution MSC.81(70)-11 December 1998 • 96/98 EC Directive 10 July 2001 ■CERTIFICATIONS Obtained MED • Certificate No : MED-MB-1009-10 |
