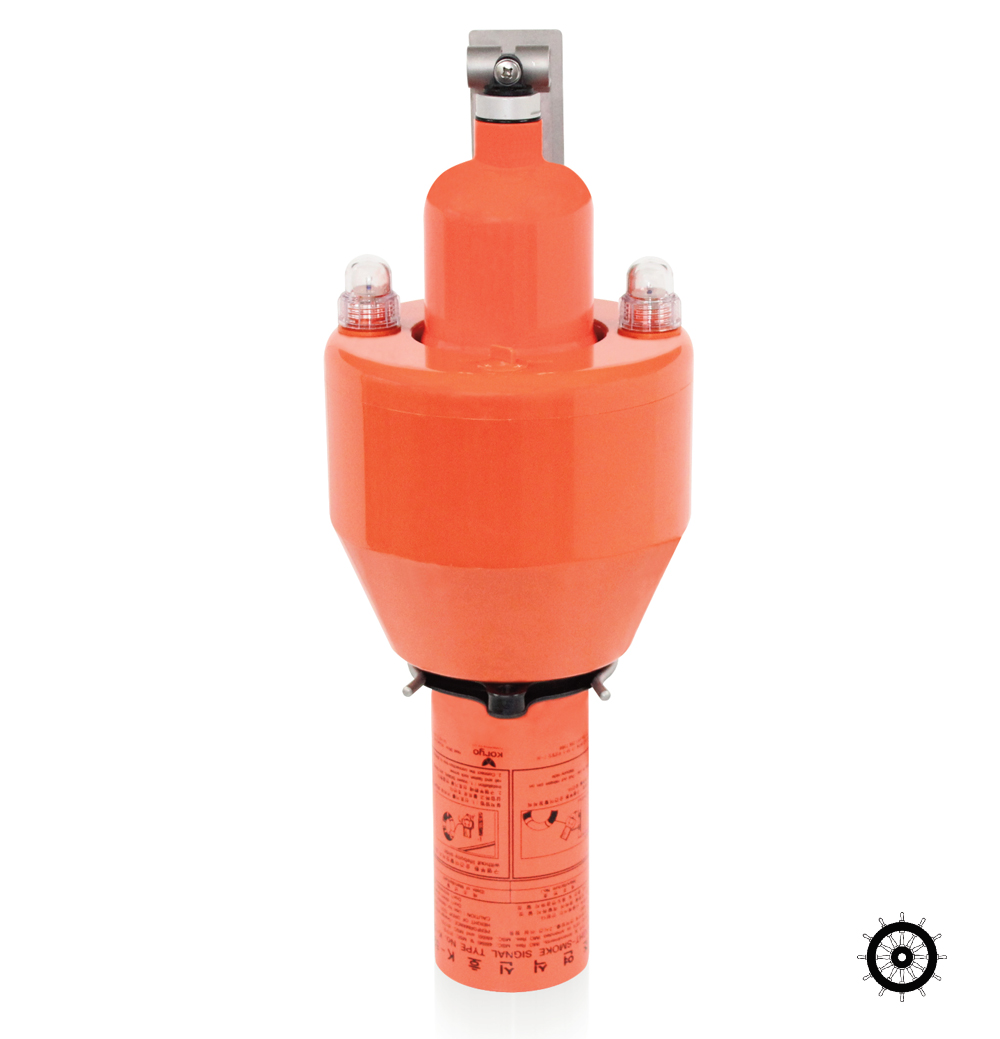

K-52 Light-Smoke Signal

제품제원
• Size : ø188ⅹ86ⅹ490㎜
• Weight: 4,300g(Includingbracket5,100g)
• Materials : Resin+Aluminum
• Lighting Power Source : 1 Lithium 3V
• Ignition Method : Detonator striking
• Lighting Method : Mercury Switch &
Toggle Switch
기능

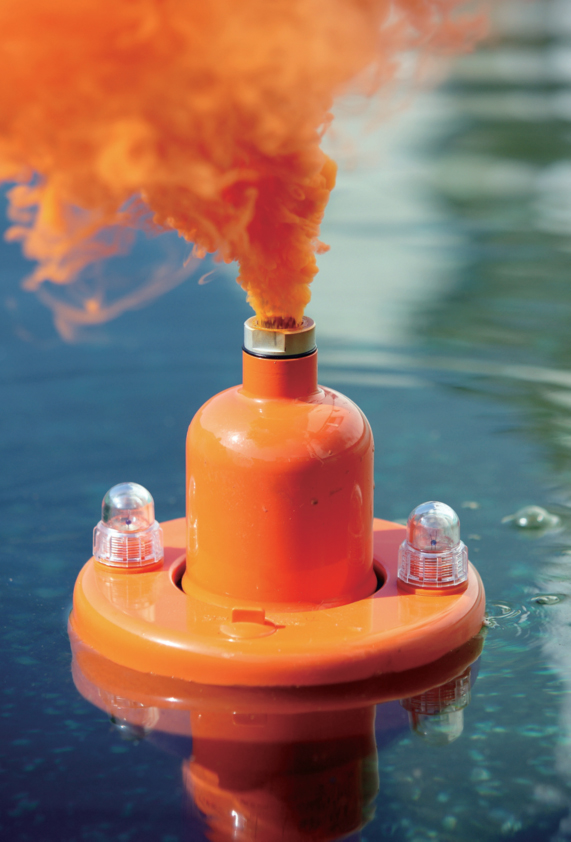

Emission of smoke by self-activation of
striker igniter by pulling out of activating
cord on top, and automatic “Light-on” in
self-up-right position afloat in water sea.
• Smoke Color : Orange
• Smoke duration : Min. 15 minutes
• Light Duration : Min. 2 hours
• Luminous Intensity : Min. 2 cd
용도
This Light-smoke signal K-52 is combined
typeofselfactivatingsmokesignalandselfigniting
light, and intended to the lifebuoy
having arrangement of quick release from
ship’s navigation bridge at side.
작동방법
■With instant separation clip for Lifebuoys.
1. Connectthe LifebuoyswithLight-smoke signals.
2. Light-smoke signals will function dropping down with Lifebuoys
if you draw the fixed pin of the instant separation clip.

■Withoutinstant separationclipfor Lifebuoys.
1. Connectthe LifebuoyswithLight-smoke signals.
2. Light-smoke signal will function if you throw Lifebuoys on the sea.
포장제원
• Life-Smoke Signal
2Rounds/1Carton(2Rounds)
정비/보관
Expiry Period : 3 years
주의사항
Avoid heating or excessive impact as fire may occur.
기타
■REFERENCE
•SOLAS 1999/2000~5 April 2001
•LSA Code-25 September 1998
•ResolutionMSC.81(70)-11 December 1998
•96/98 EC Directive-10 July 2001

■CERTIFICATIONS
Obtained MED
• Certificate No : MED-MB-1013-12
