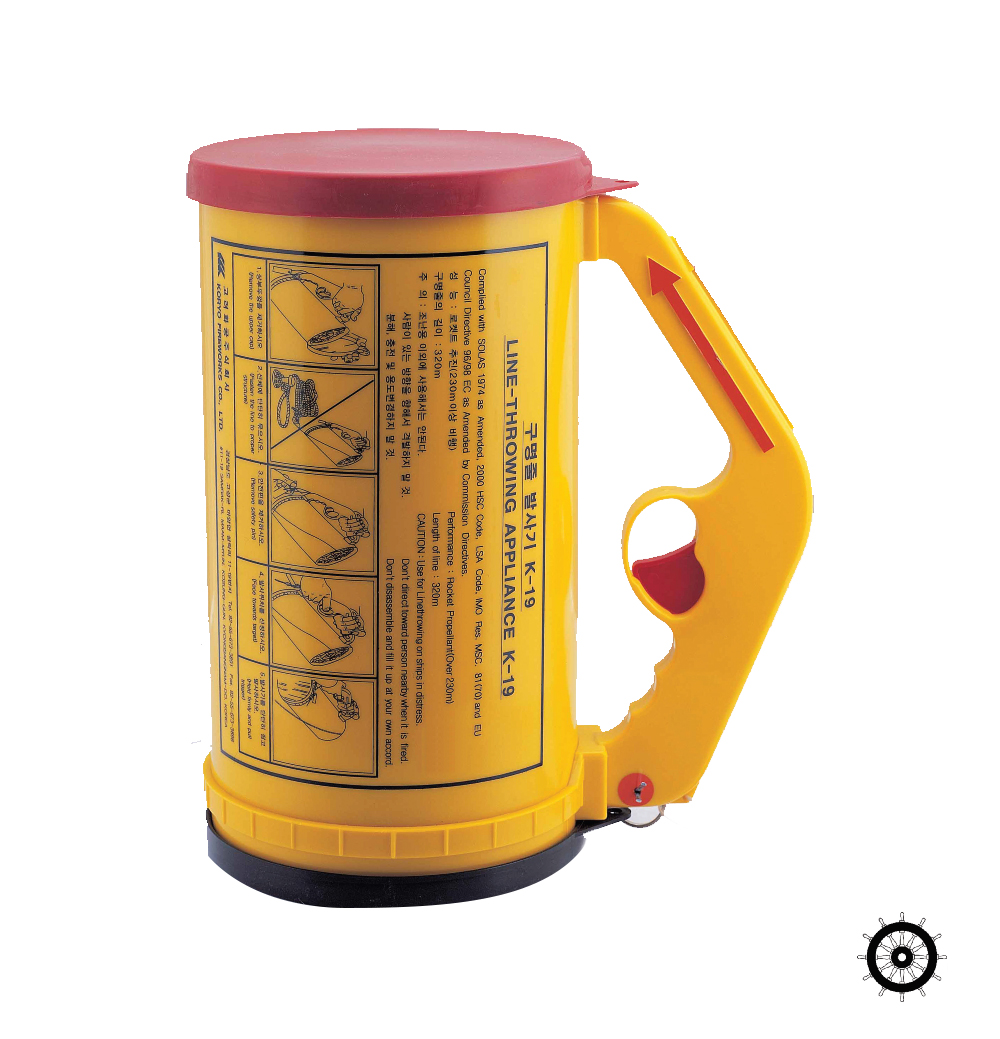

K-19 Line-Throwing Appliance
제품제원
• Size : ø183ⅹ333㎜
• Weight : 3,900g
• Materials : Resin
• Length of line : 320m(±10%)
• Propelling Method : Detonator striking
• Weight : 3,900g
• Materials : Resin
• Length of line : 320m(±10%)
• Propelling Method : Detonator striking
기능
• Propelling distance : Min.230m
|
용도
Line-throwing appliance K-19 should be
used that quickly and accurately rescue of a vessel or human life at a far-off place. |
|---|---|
|
작동방법
Remove the upper cap and bind firmly up
hall with the line with red band. And point arrow on unit in the direction of firing and then, press the line throwing appliance against your thigh and the remove safety pin. And the last, held the body and pull trigger in the direction of firing. When fullingthe trigger,triggerpullthe firingpin latch in a consequence. Firing pin strikes detonator,andafter ignitedignitioncharge. |
|
포장제원
• Line-Throwing Appliance
4Rounds/1Carton(4Rounds) |
|
정비/보관
Expiry Period : 3 years
|
|
기타
■REFERENCE
•SOLAS 1999/2000~5 April 2001 •LSA Code-25 September 1998 •ResolutionMSC.81(70)-11 December 1998 •96/98 EC Directive-10 July 2001 ■CERTIFICATIONS Obtained MED • Certificate No : MED-MB-1013-10 |
