Product Info

KORYO runs today to creat a better tomorrow for mankind.

제품규격

형식모델 소화제질량(g) 설계밀도 방호체적(m³) (A급 화재/B급 화재)
1. KF-50A 50 0.51 / 0.57
2. KF-100A 100 1.03 / 1.15
3. KF-300A 300 3.11 / 3.46
4. KF-500A 500 5.19 / 5.77
5. KF-850A 850 8.82 / 8.82
6. KF-500A2 1000 10.38 / 11.53
7. KF-850A2 1700 17.65 / 17.65
8. KF-1000A2 2000 20.77 / 20.77
9. KF-2300A 2300 25.22 / 25.22
10. KF-3000A 3000 32.90 / 32.90
11. KF-2300A2 4600 50.44 / 50.44
12. KF-3000A2 6000 65.80 / 65.80
13. KF-3000A3 9000 98.70 / 98.70

How to operate



 Install the along with self generating device at fire extinguishing target space.

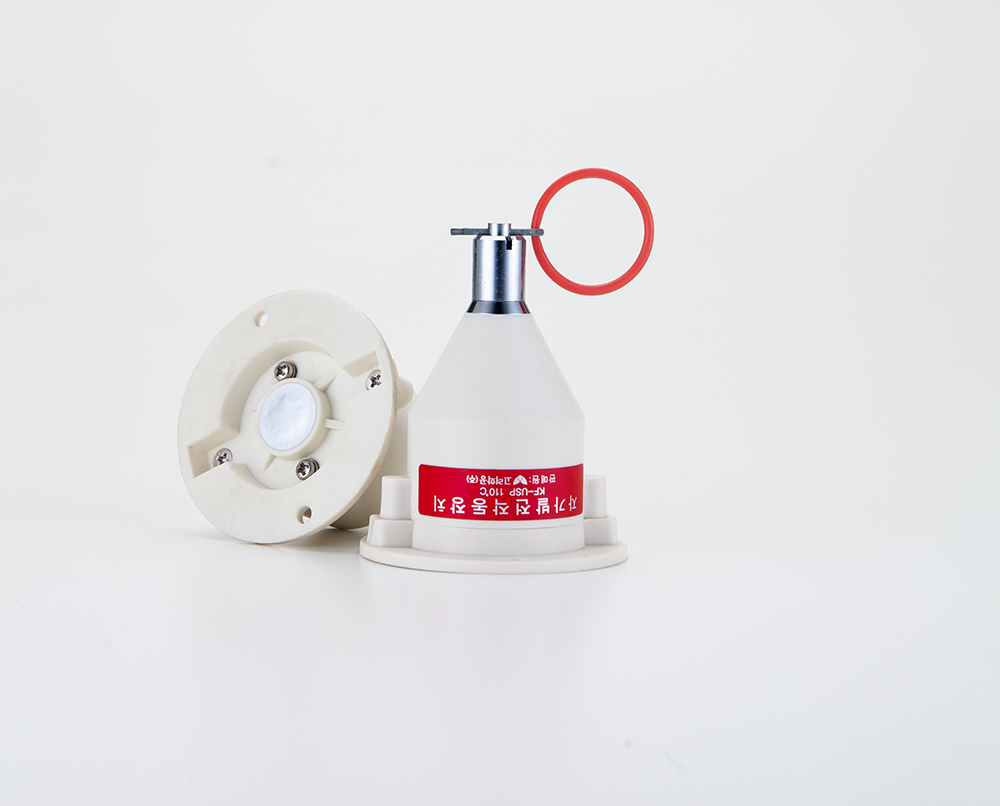

 Self generating device detect temperature of 93℃ [72℃, 110℃(±5%)] upon occurrence of fire accident.



 Fire to be extinguished by activating the and discharging aerosol triggered by electrical signal of self        generating device.











Linkage Composition



Guarantee Economics

doesn't need any maintenance charge and easy to install with no pipe and auxiliary equipment.



Environment-friendly Product

 is the eco-friendly product as the indexes of ozone layer destruction and global warming potential are 'Zero'.



Linkage working

 connected the Self Generating Device can be operated and extinguished at the same time.



Harmless to human

 does not create suffocation caused by extinguishing agent to human and does not give any damage to electrical equipment and communications.



No electrical power

 does not require electrical power and maintenance because it generates impulse by self heat detector.
